SKU:54604

A Pitsco Exclusive

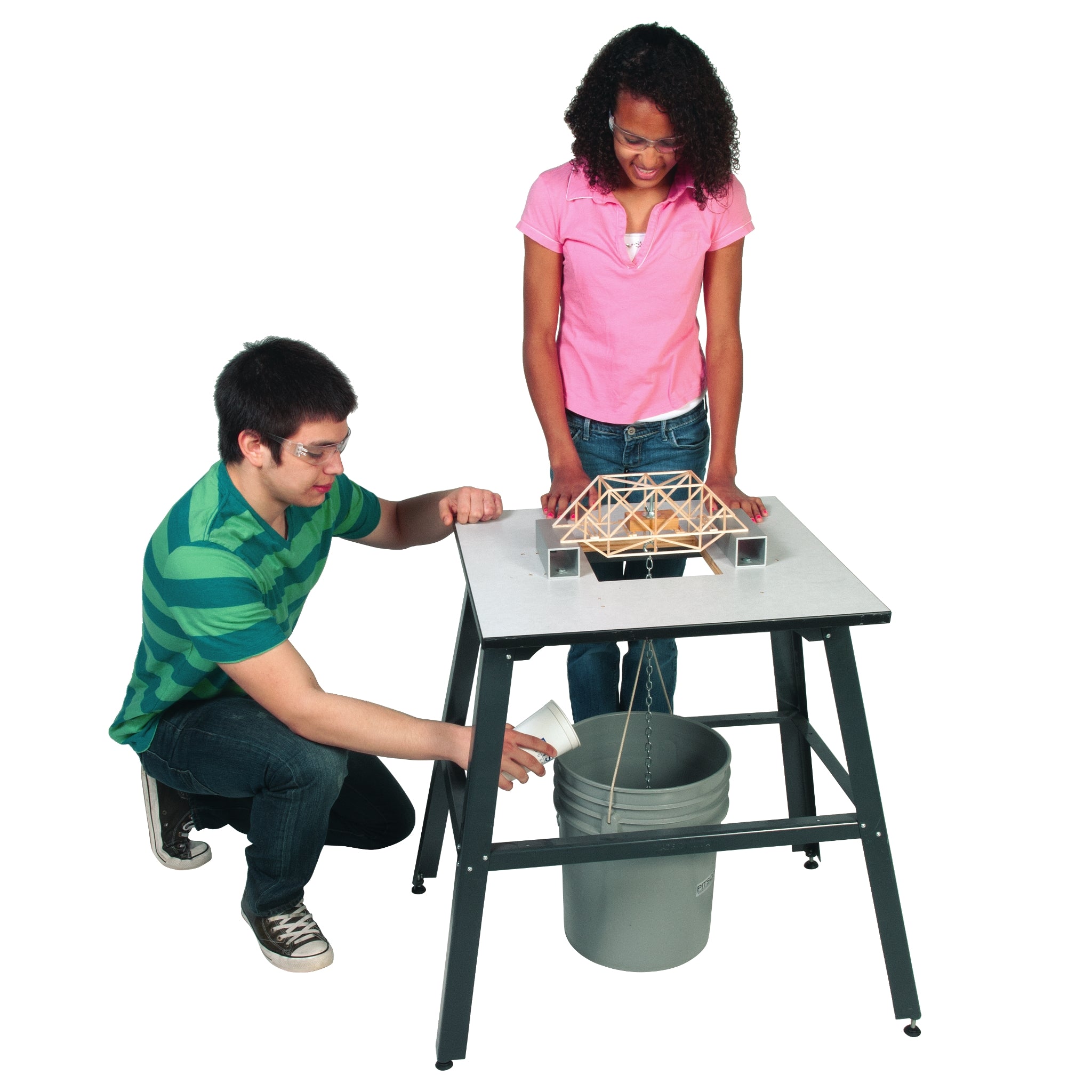

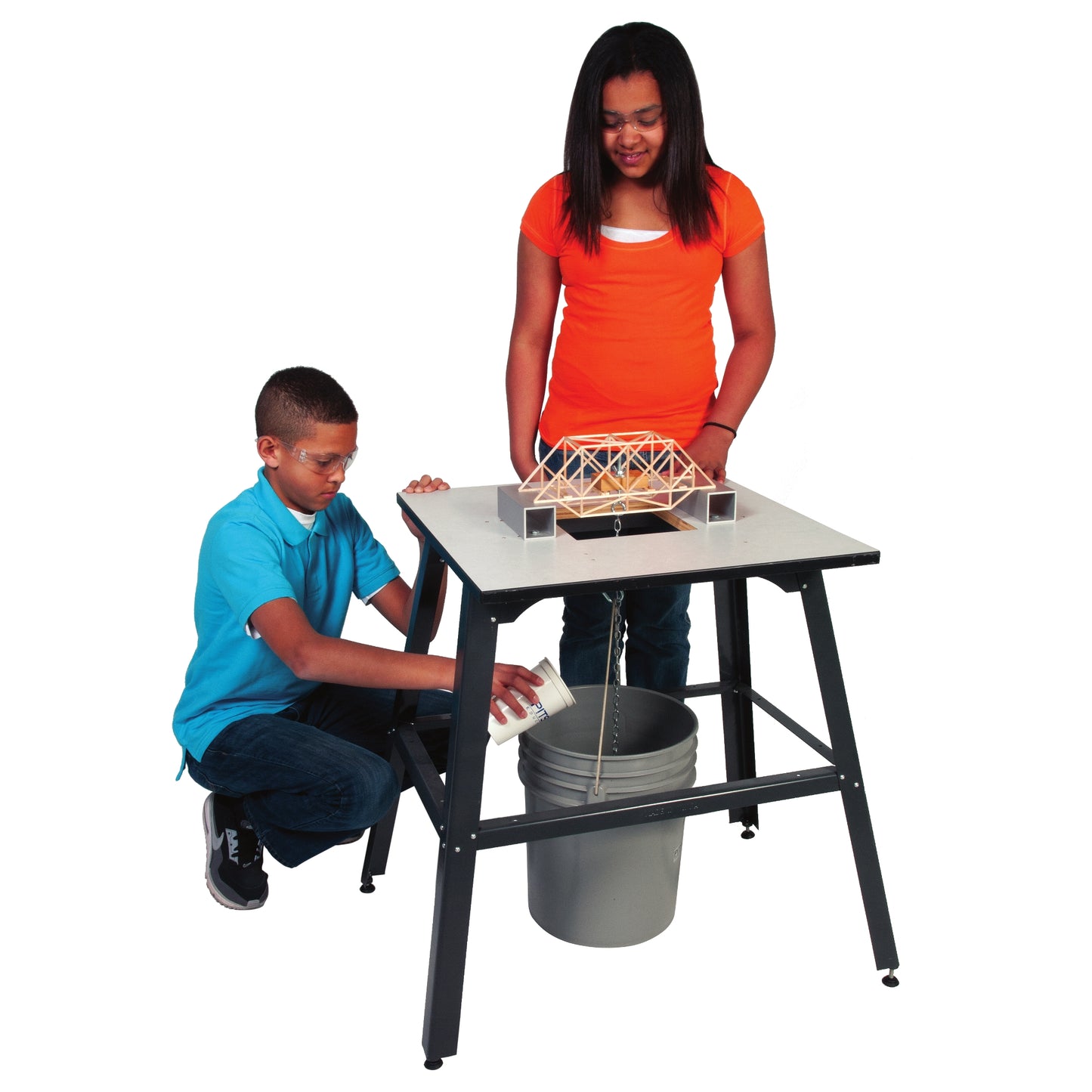

Features a sturdy metal stand with an adjustable bridge span. A test block sits on the roadbed with a bucket suspended underneath. The load can be gradually applied to the bridge by slowly adding sand (not included). Caution: The maximum weight to add to the bucket is 100 lb.

Features a sturdy metal stand with an adjustable bridge span. A test block sits on the roadbed with a bucket...

Grades 6-12
$305.00 USD
$0.00 USD $305.00 USD
Shipping calculated at checkout.

In stock
Add To Wishlist

Specifications

  • Dimensions: 23-1/2" x 23-1/2" x 30-1/4"
  • Tools and Materials Required: 5/16" nut driver or wrench, pliers, screwdriver, and sand (or other weight), sold separately.
View full details
Grades 6-12

What You'll Get

Structure Testing Device
  • 1 tester top
  • 4 legs
  • 4 corner brackets
  • 2 upper braces
  • 2 long lower braces
  • 2 short lower braces
  • 4 adjustable feet
  • 32 Phillips-head bolts
  • 32 star washers
  • 32 nuts
  • 12 wood screw head bolts
  • 2 aluminum span blocks
  • 4 hex-head bolts
  • 4 washers
  • 5 wing nuts
  • 1 bucket
  • 1 wooden load block
  • 2 deflection gauges
  • 1 load chain (3')
  • 1 large flat washer
  • 1 eyebolt
  • 1 large S hook

Support Materials

Learning Values

Science icon

Science

  • Equilibrium
  • Forces
  • Modeling
  • Structures
Technology icon

Technology

  • Construction
  • Design processes
  • Historical perspectives
  • Testing
Engineering icon

Engineering

  • Data analysis
  • Design aesthetics
  • Engineering design
  • Technological design
Math icon

Math

  • Angles
  • Efficiency
  • Pythagorean theorem
  • Symmetry
