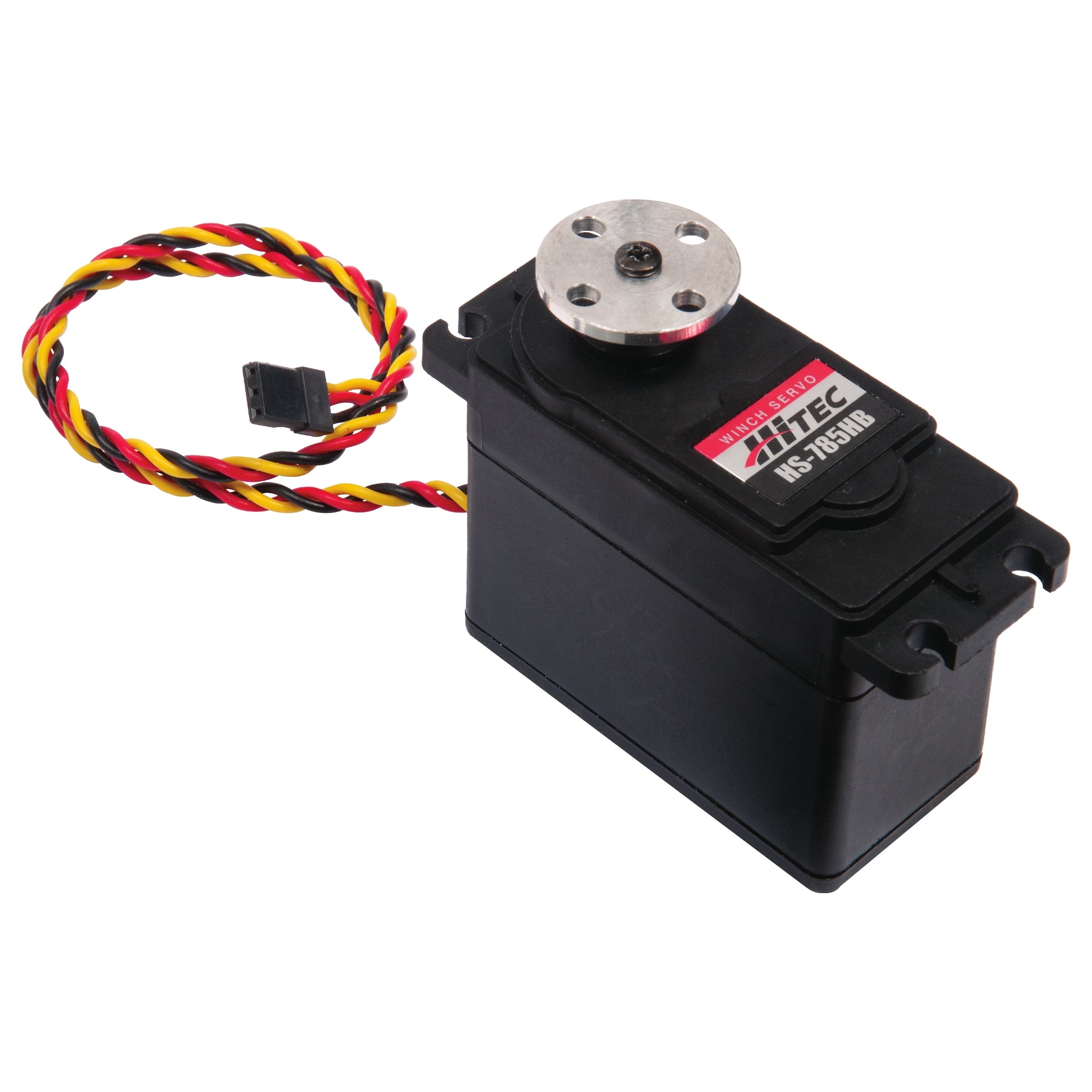

Quarter-Scale HS-785HB Winch Servo Motor with Horn
Quarter-Scale HS-785HB Winch Servo Motor with Horn
SKU: SKU:39905
A Pitsco Exclusive
The HS-785HB is a super-duty servo with advanced features. Incorporated into this servo are heavy-duty Karbonite gears and integrated circuitry for accurate positioning over a 1,260-degree range (3.5 rotations).
Delivering a maximum torque of 183 oz-inches, this unique servo offers greater rotational range control and power to TETRIX® robot builds. Attach this quarter-scale servo to your TETRIX robot with ease with one of our quarter-scale servo mounting brackets.
The HS-785HB is a super-duty servo with advanced features. Incorporated into this servo are heavy-duty Karbonite gears and integrated circuitry...
In stock
Couldn't load pickup availability
Specifications
- Note: Combine with either the quarter-scale servo frame mounting bracket (39383) or the quarter-scale servo front mounting bracket (39380) to easily attach motor to MAX structural and motion elements.
- Quantity: pkg of 1
- Weight: 96.6 grams per servo
- Size: 74 mm x 55 mm x 27 mm
- Operating Voltage: 6 volts
Safety
What You'll Get
- Quarter-Scale HS-785HB Winch Servo Motor
- Aluminum TETRIX MAX Servo Horn
- Nylon dual-wind pulley
