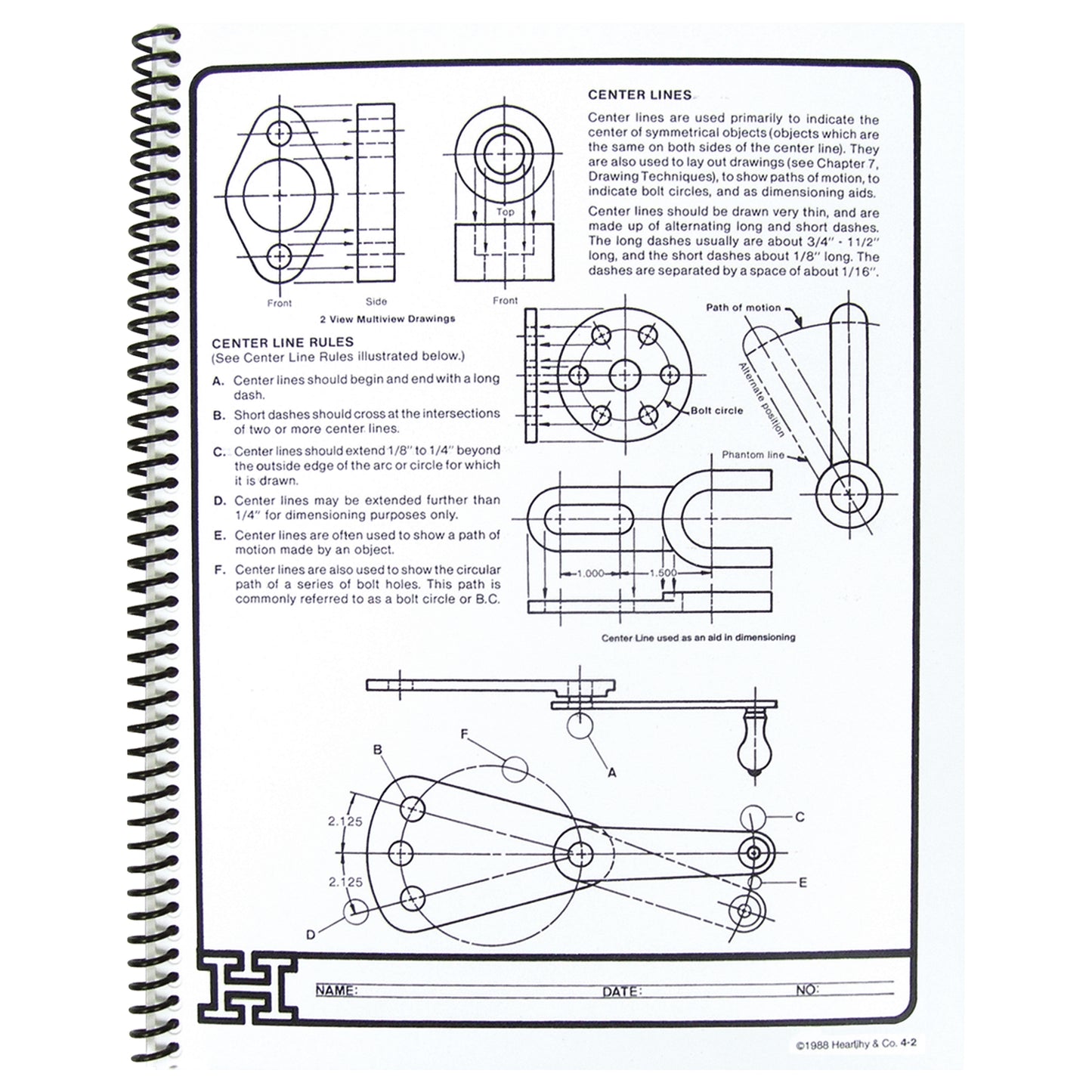

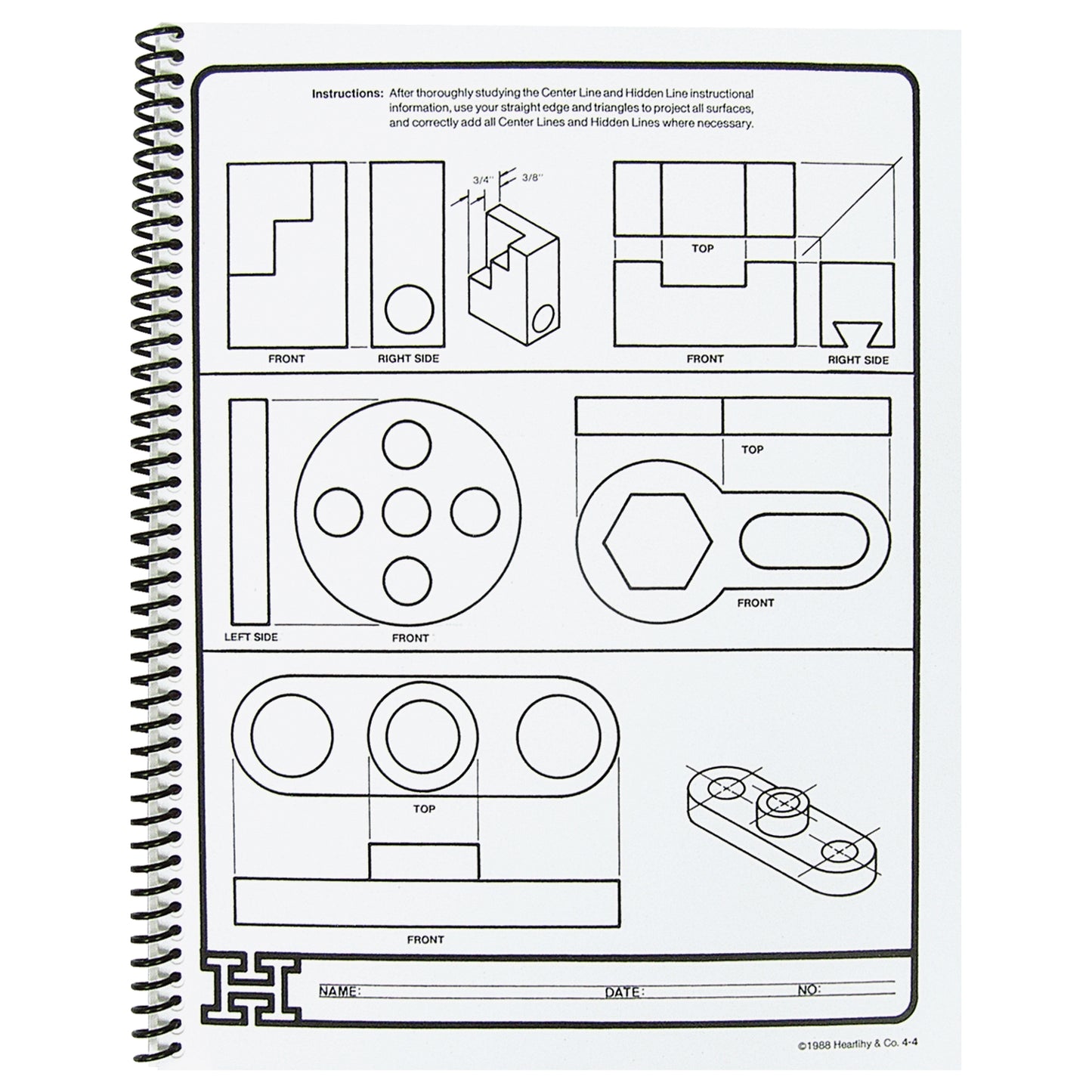

In this workbook, students are first introduced to drafting instruments and equipment and how to measure using a scale. They become skilled with American Society of Mechanical Engineers (ASME) line conventions and geometric construction and conclude with basic dimensioning and drawing techniques. All 64 pages are self-instructing and incorporate current ASME drafting standards.
