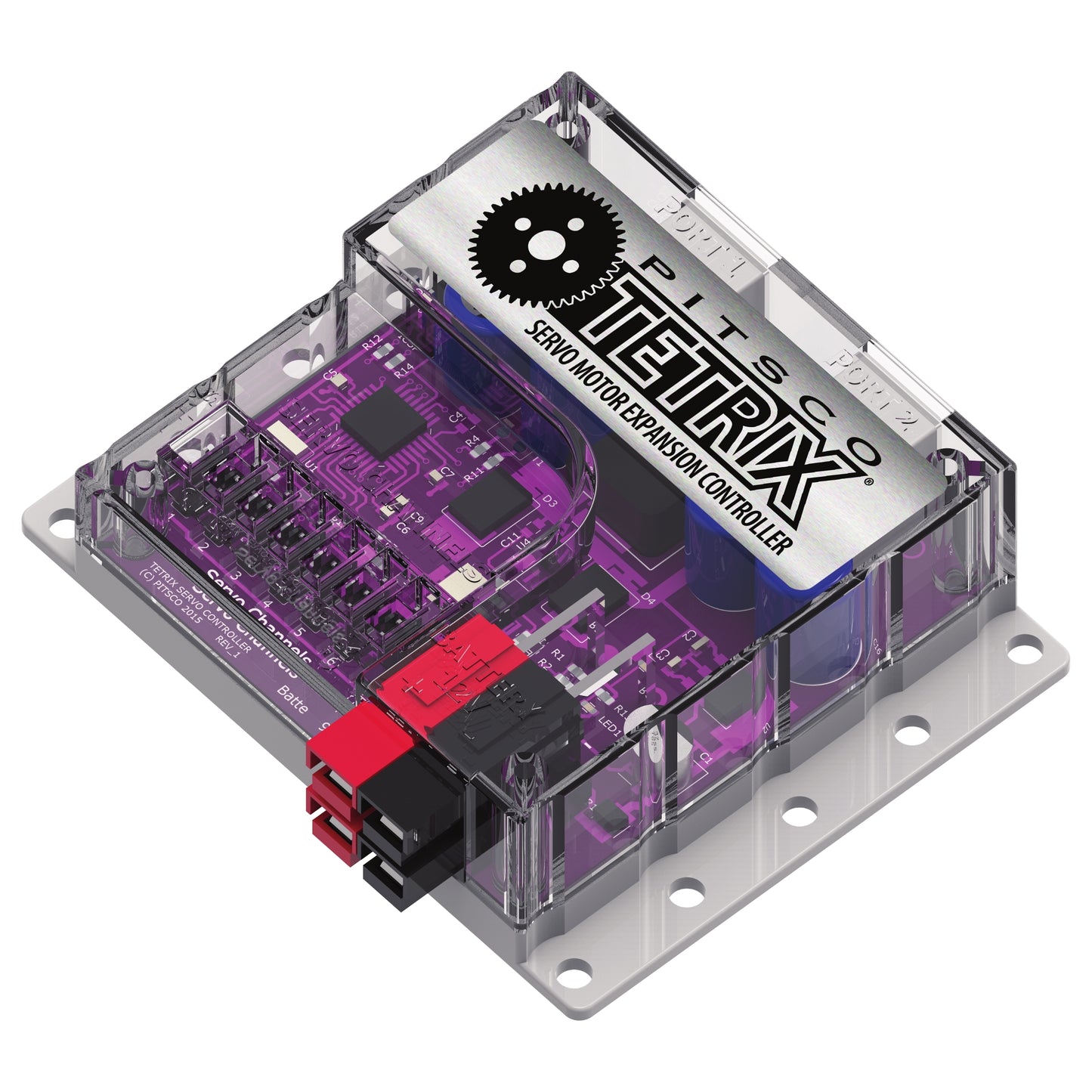

TETRIX® MAX Servo Motor Expansion Controller
TETRIX® MAX Servo Motor Expansion Controller
TETRIX® MAX Servo Motor Expansion Controller
TETRIX® MAX Servo Motor Expansion Controller

TETRIX® MAX Servo Motor Expansion Controller

TETRIX® MAX Servo Motor Expansion Controller

SKU:44355

A Pitsco Exclusive

Designed to use with TETRIX® PRIZM® Robotics Controller, this motor controller connects to the PRIZM expansion port, enabling users to control up to six additional servo motors and two additional continuous rotation servo motors.

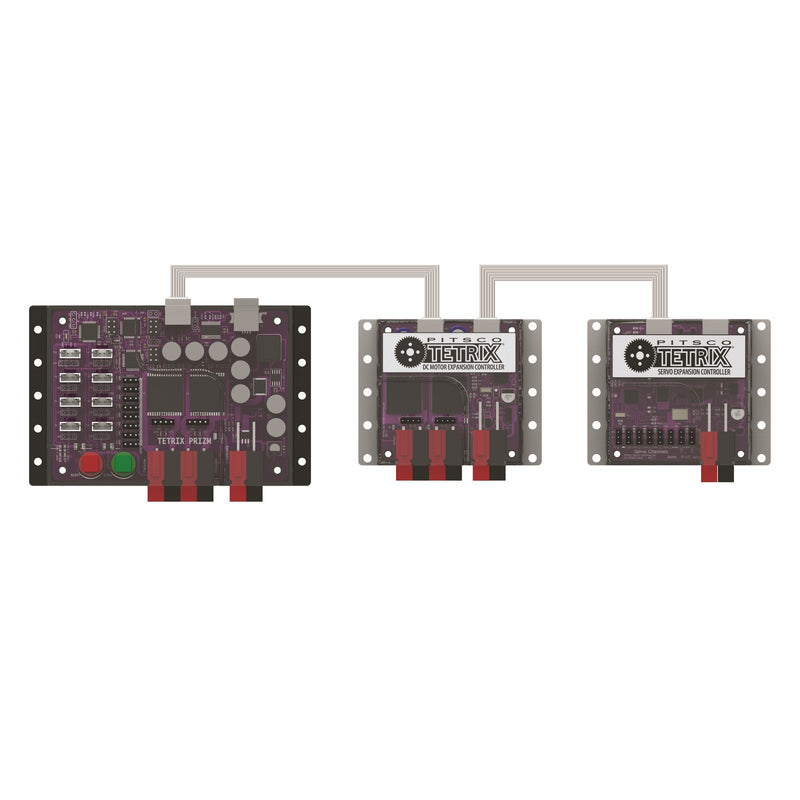

  • Up to four motor controllers can be connected to the PRIZM expansion port.
  • Additional power and expansion ports support daisy-chain configurations.

Supported programming languages include Arduino and LEGO® MINDSTORMS® EV3. The motor controller can be connected to the LEGO EV3 Brick. Software blocks supporting the EV3 software are located in the Downloads section below.

Note: In order to use the LEGO EV3 hardware, you must use the EV3-G version of the EV3 software.

Designed to use with TETRIX® PRIZM® Robotics Controller, this motor controller connects to the PRIZM expansion port, enabling users to...

Grades 9-12
$129.95 USD
$0.00 USD $129.95 USD
Shipping calculated at checkout.

In stock
Add To Wishlist

Specifications

  • Quantity: pkg of 1
  • Weight: 80.3 g
  • Material: Clear polycarbonate encasement
  • Size: 89.4 mm x 78.6 mm x 27 mm

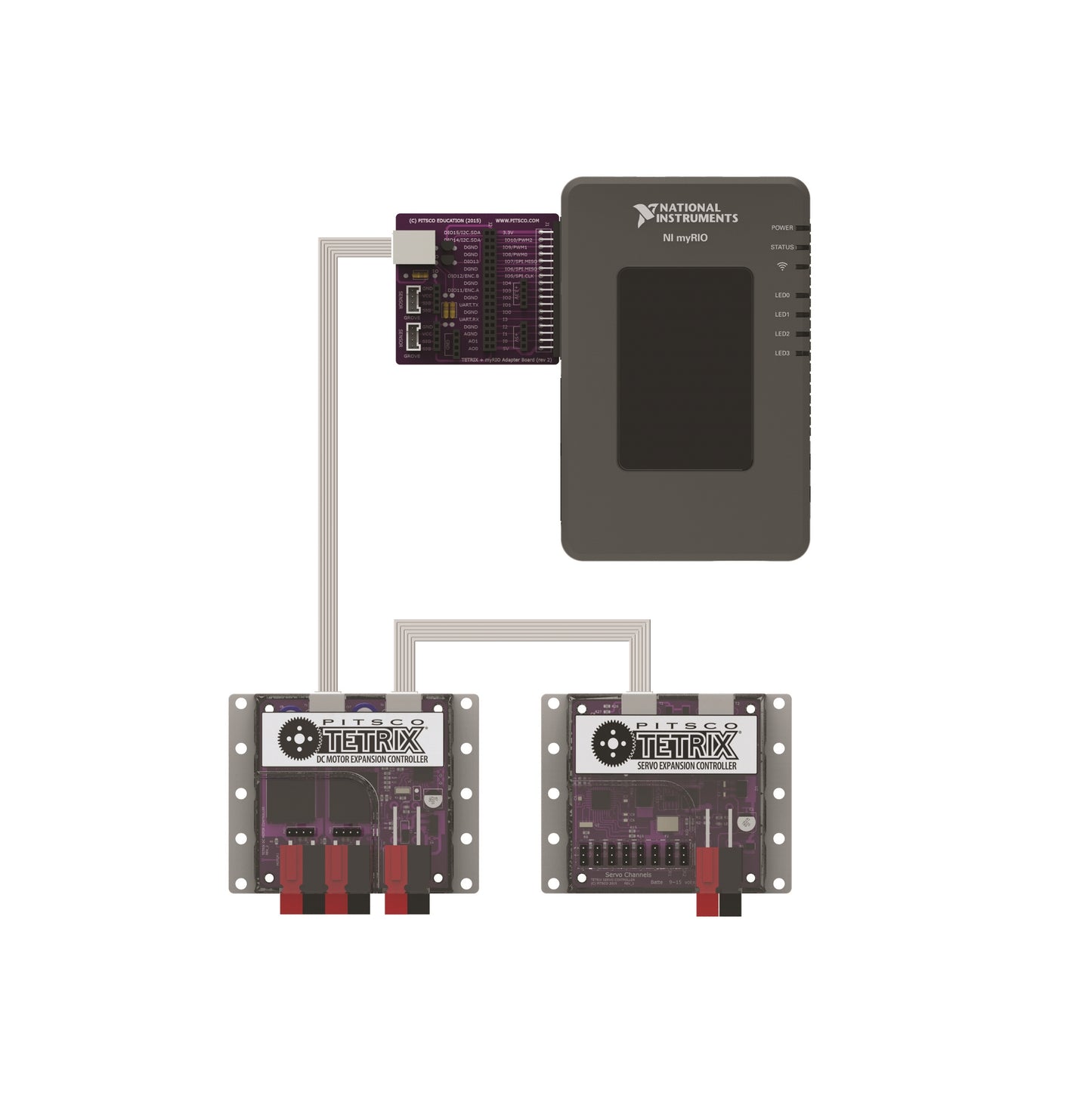

  • Other Products Required: This product is intended for use with the TETRIX PRIZM Robotics Controller, the LEGO MINDSTORMS EV3 Brick, or the National Instruments myRIO.
  • Software Specifications: Supported software includes the Arduino Software (IDE) and the LEGO MINDSTORMS EV3 Software.
