Digital Theory: Intro to Digital Electronics by ETron Circuit Labs is electronic education curriculum designed for the 21st-century student. Featuring 35 exciting labs, Digital Theory picks up where The Basics V3 leaves off, teaching the necessary digital theory needed to be competitive in a technology-based job market.

Digital Theory: Intro to Digital Electronics by ETron Circuit Labs is electronic education curriculum designed for the 21st-century student. Featuring...

Grades 9-12

Product variants

$64.75 USD

~~$0.00 USD~~ $64.75 USD

Shipping calculated at checkout.

In stock

Add To Wishlist

View full details

Grades 9-12

Digital Electronics Brought to Life

The digital world is all around us and even in the palm of our hands. Such devices exist as a result of digital electronics: billions of transistors grouped into circuits designed to deliver outcomes most people simply take for granted. Students who engage with this all-inclusive lab will not only gain an understanding of how those circuits function but will also go on to design the circuits that will power the things not yet thought up.

Note This lab is fully backward compatible with Tronix Lab 2 and Mr. Circuit 2 courses.

The six lessons and 35 labs are:

Lesson 1: Component Review
Lesson 2: Digital vs. Analog
Lesson 3: Digital Terminology
Lesson 4: Solderless Circuit Board Intro
Lesson 5: Integrated Circuit Schematics
Lesson 6: Intro to Flip-Flops

Lab 1: LED Logic Indicator Circuit
Lab 2: AND Logic Gate
Lab 3: OR Logic Gate
Lab 4: NOT & YES Logic Gate
Lab 5: NOR Logic Gate
Lab 6: NAND Logic Gate
Lab 7: 2 NAND Logic Gate “Clock"
Lab 8: NAND Logic Gate “Timer"
Lab 9: 2 NAND Logic Gate “Memory” (R-S Flip-Flop)
Lab 10: 555 Timer IC
Lab 11: Binary Counter Circuit (MOD-16)
Lab 12: Decode Counter Circuit (MOD-10)
Lab 13: 2, 4, 8, 16 Divider Circuit
Lab 14: Digital Readout LED Display
Lab 15: Digital Readout Decoder
Lab 16: Digital Counter Display
Lab 17: Digital Up or Down Counter
Lab 18: 8 Output Demultiplexer Circuit
Lab 19: Digital Chasing Lights
Lab 20: Visual Logic Probe
Lab 21: Touch Activated Pulse Generator
Lab 22: 555 Timer IC Pulse Train Generator
Lab 23: YES / NO Decision Maker
Lab 24: YES / NO / MAYBE Circuit
Lab 25: Stop-Action Timing Circuit
Lab 26: Digital Touch-Activated Switch
Lab 27: Digital Stepping Touch-Activated Switch
Lab 28: Digital Light-Activated Counter
Lab 29: Winning Number Generator
Lab 30: 1-6 Number Generator
Lab 31: D Flip-Flop
Lab 32: J-K Flip-Flop
Lab 33: Schmitt Trigger
Lab 34: Shift Registers
Lab 35: Intro to Operational Amplifiers (Op-Amps)

What You'll Get

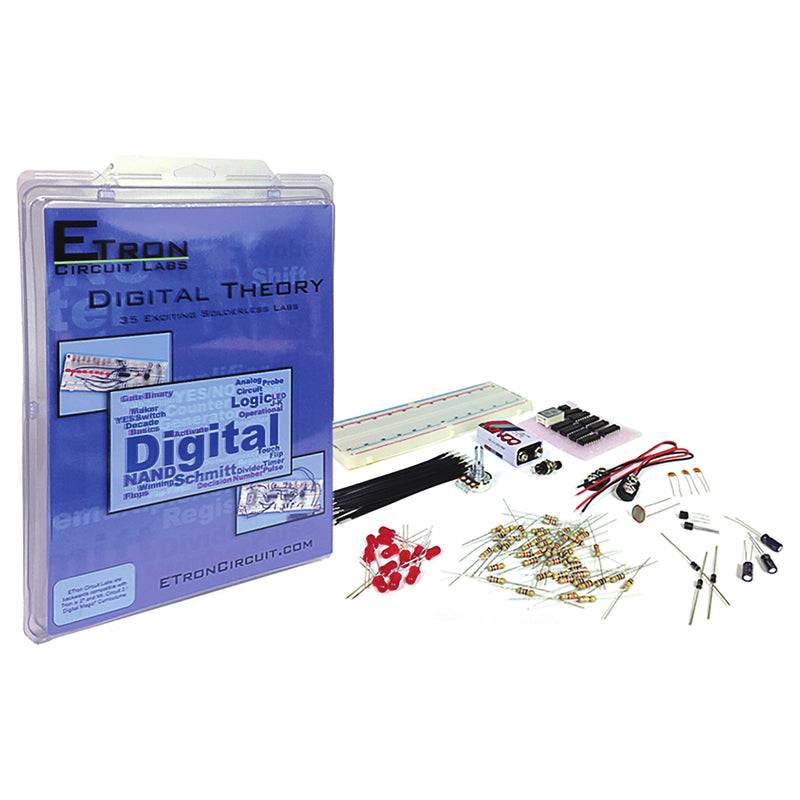

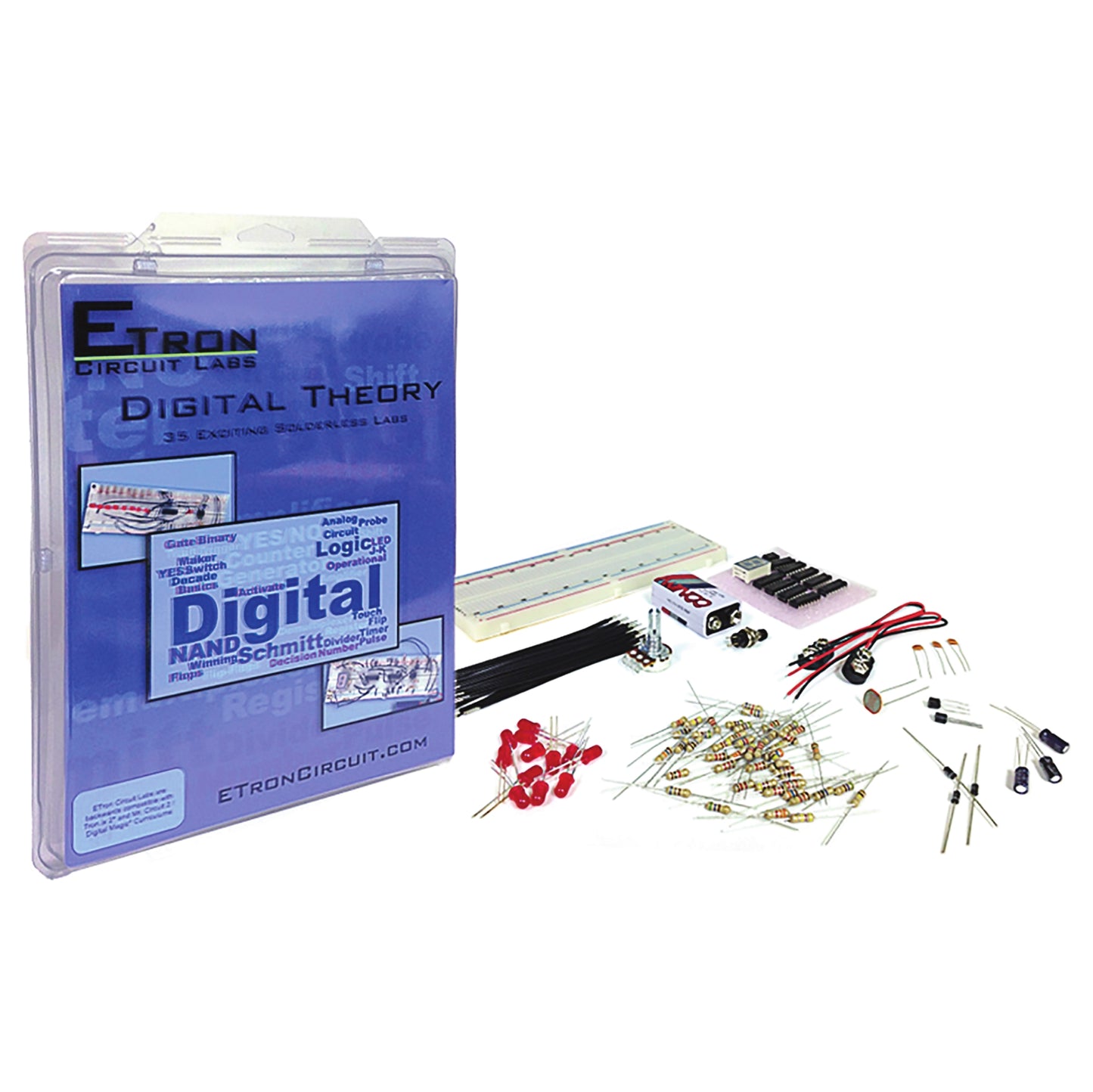

Digital Theory: Intro to Digital Electronics manual
Solderless circuit board
Battery (9 V)
Parts bag
- Resistors
- Potentiometer
- LEDs
- Switch
- Transistors
- Integrated circuits (IC)
- Photocell
- Seven segment display
- Diode
- Electrolytic capacitors
- Ceramic capacitors
- Wire
