TETRIX® MAX DC Motor Expansion Controller

SKU: W44354
A Pitsco Exclusive
$159.95 (USD)
Availability: In Stock


This motor controller connects to the PRIZM® expansion port, enabling users to control up to two additional 12-volt DC motors.

  • Up to four motor controllers can be connected to the PRIZM expansion port
  • Has two H-bridge outputs to control the speed and direction of two DC motors
  • Includes two quadrature encoder input ports
  • Additional power and expansion ports support daisy-chain configurations.

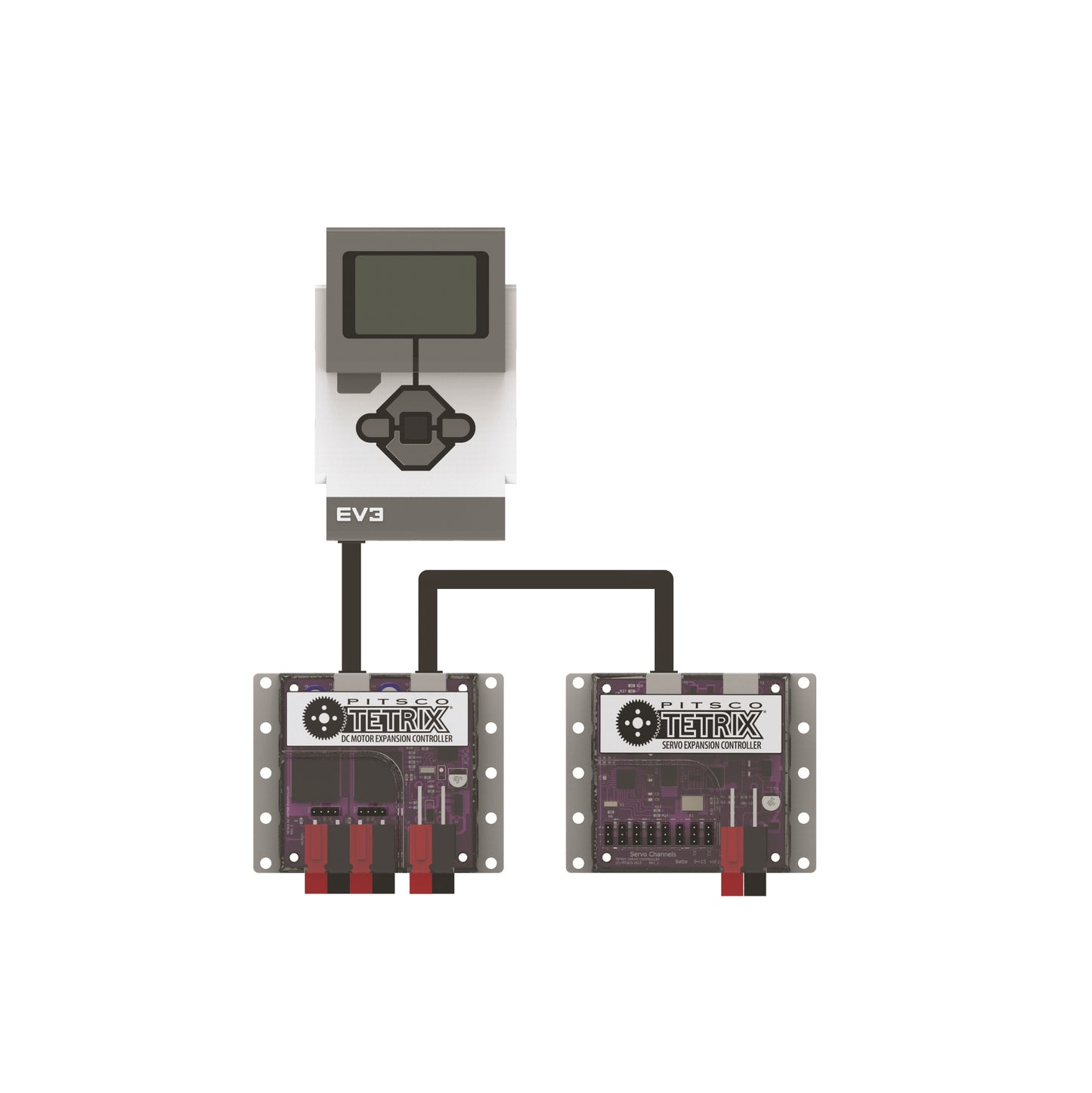

Supported programming languages include Arduino and LEGO® MINDSTORMS® EV3. The motor controller can be connected to the LEGO EV3 Brick. Software blocks supporting the EV3 software are located in the Downloads section below.

Note: In order to use the LEGO EV3 hardware, you must use the EV3-G version of the EV3 software.


Type: Robotics Elements/Control Elements Grades: 9-12





  • Quantity: pkg of 1
  • Weight: 85.3 g
  • Size: 89.4 mm x 78.6 mm x 27 mm
  • Material: Clear polycarbonate encasement
  • Other Products Required: This product is intended for use with the TETRIX PRIZM Robotics Controller, the LEGO MINDSTORMS EV3 Brick, or the National Instruments myRIO.
  • Software Specifications: Supported software includes the Arduino Software (IDE) and the LEGO MINDSTORMS EV3 Software.
